Description
|
WHAT’S IN THE BOX?
|
AC Cord

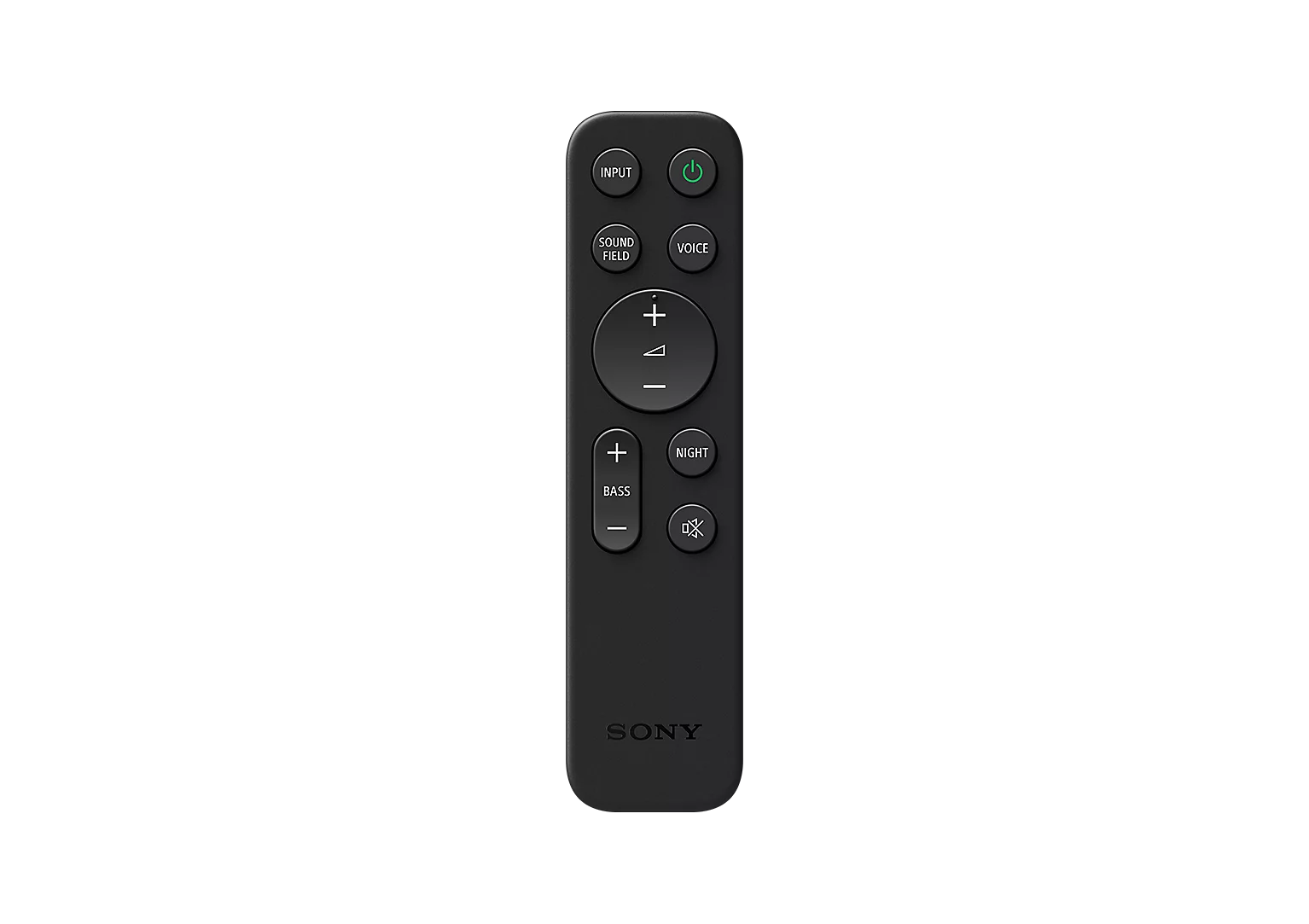

Batteries for remote commander Foot HDMI Cable Reference Guide Remote Control TV center speaker mode cable Wall mounting bracket Wall mounting template |
|
|---|---|---|
|
Size & Weight
|
||
|
MAIN UNIT SIZE – BODY ONLY (W x H x D)
|
1300 x 64 x 113 mm
|
|
|
MAIN UNIT SIZE – BODY ONLY (W x H x D) (INCH)
|
51 1/4 x 2 5/8 x 4 1/2 in
|
|
|
MAIN UNIT WEIGHT – BODY ONLY
|
5.5 kg
|
|
|
MAIN UNIT WEIGHT – BODY ONLY (OZ)
|
12 lb 3 oz
|
|
|
Amplifier
|
||
|
Amplifier Type
|
Digital Amplifier,S-Master HX
|
|
|
Amplifier Channels
|
13 ch
|
|
|
Interface
|
||
|

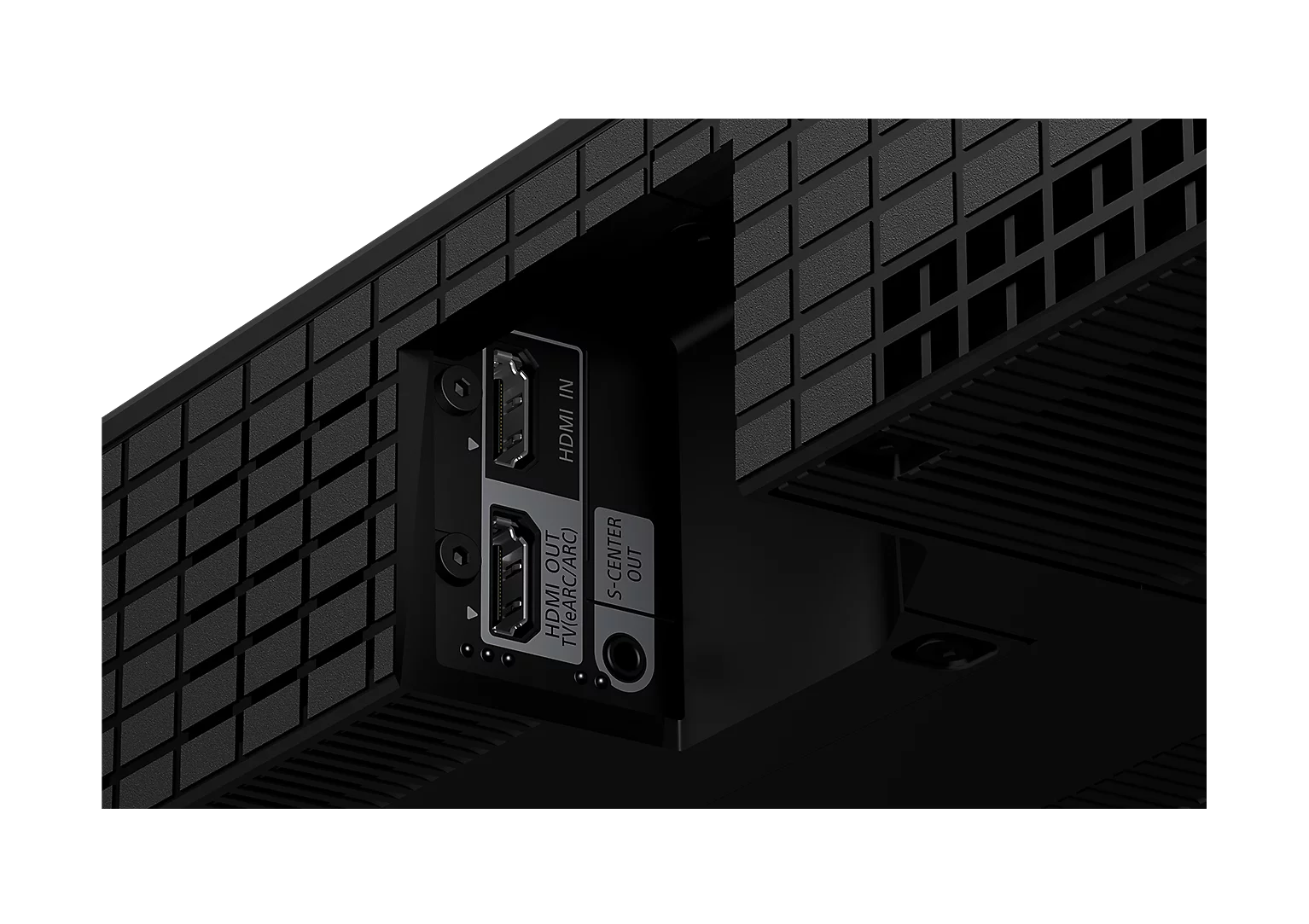

Input and Output Terminals
|
S-Center Out
|
|
|
WI-FI®
|
Yes
|
|
|
IEEE802.11 version
|
a / b / g / n / ac
|
|
|
BLUETOOTH® VERSION
|
Bluetooth® version: 5.2
|
|
|
HDMI
|
||
|
Number of Input/Output
|
Input / Output: 1 / 1 (eARC / ARC)
|
|
|
eARC
|
Yes
|
|
|
4K/60p/YUV4:4:4
|
Yes
|
|
|
HDR
|
Yes
|
|
|
Dolby Vision™ Compatible
|
Yes
|
|
|
HLG (hybrid log gamma)
|
Yes
|
|
|
HDCP2.2
|
Yes
|
|
|
BRAVIA Sync
|
Yes
|
|
|
HDMI CEC
|
Yes
|
|
|
Audio Formats
|
||
|
360 REALITY AUDIO
|
Yes
|
|
|
HIGH RESOLUTION AUDIO
|
Yes
|
|
|
HDMI input
|
Dolby Digital,Dolby Digital Plus,Dolby TrueHD,Dolby Dual mono,DTS,DTS HD High Resolution Audio,DTS HD Master Audio,DTS ES,DTS 96 / 24,DTS: X,IMAX ENHANCED,LPCM: 2ch / 5.1ch / 7.1ch,360 Reality Audio
|
|
|
HDMI eARC
|
Dolby Digital,Dolby Digital Plus,Dolby TrueHD,Dolby Atmos,Dolby Dual mono,DTS,DTS HD High Resolution Audio,DTS HD Master Audio,DTS ES,DTS 96 / 24,DTS: X,IMAX ENHANCED,LPCM: 192kHz / 24bit
|
|
|
BLUETOOTH® COMMUNICATION (RECEIVER)
|
AAC,SBC,LDAC
|
|
|
Sound Function
|
||
|
Sound Mode
|
Sound Field
|
|
|
Sound Effect
|
Night Mode,Voice Mode
|
|
|
SOUND ENHANCEMENT TECHNOLOGY
|
DSEE Ultimate
|
|
|
Calibration
|
Yes
|
|
|
Speaker Layout
|
||
|
Speaker Structure
|
7.0.2 ch (13 Speaker Units)
|
|
|
bar speaker
|
HT-A9000
|
|
|
Network Function
|
||
|
Network Function
|
Spotify Connect,AirPlay
|
|
|
Wireless Features
|
||
|
Wireless Surround (with optional wireless speakers)
|
Yes
|
|
|
Application
|
||
|
SONY | BRAVIA CONNECT
|
Yes
|
|
|
Function with Bravia
|
||
|
FUNCTION WITH BRAVIA
|
Acoustic Center Sync,Voice Zoom 3™,Quick Setting Menu
|
|
|
Details
|
||
|
POWER CONSUMPTION *APPROX
|
62W
|
|
|
Wall-mountable
|
Yes
|
|
